手套箱

双工位

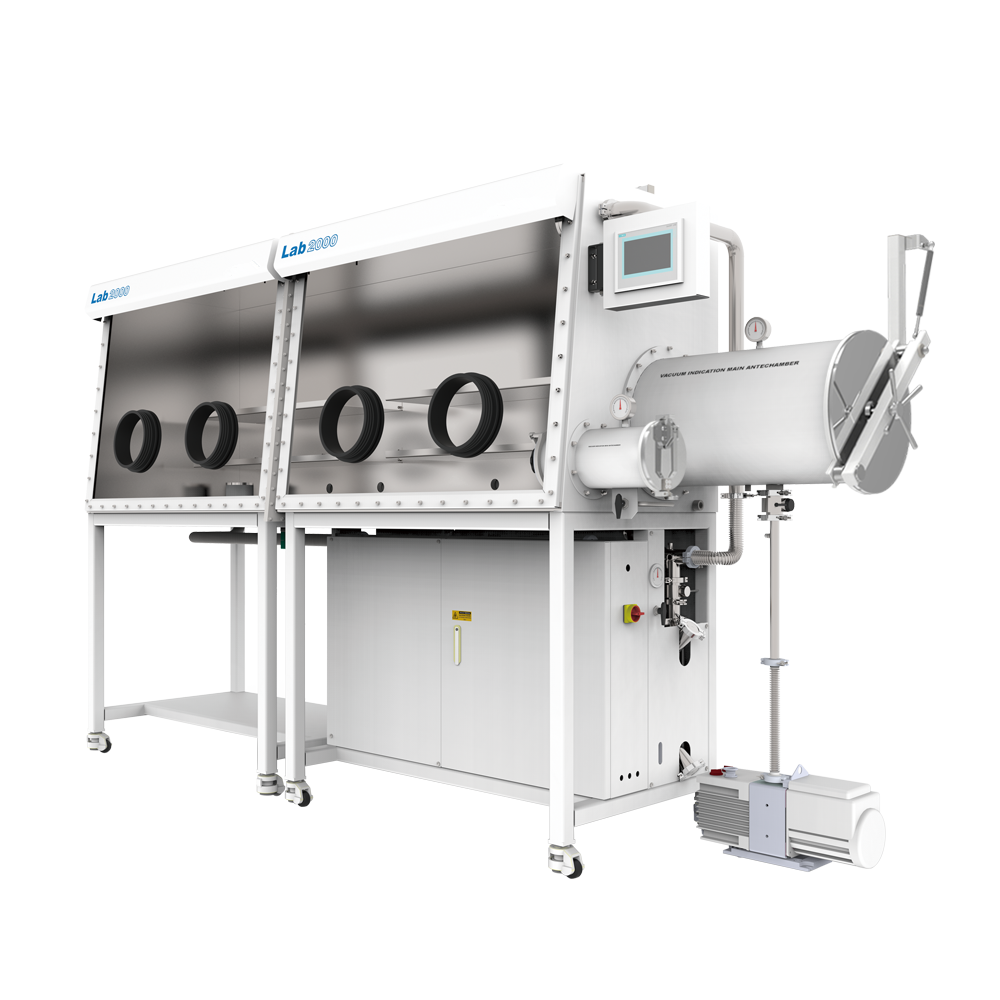

PGB-1800 Main Chamber
Material	Stainless Steel Type 304, Thickness 3mm (1/8")
Size	InsideDimension: 1800mm(L) x 750mm(W) x 900mm(H) 70.9"/29.5"/35.4"
Sight Windows	Inclined, Safety Glass, Thickness 8mm (1/3")(10mm Polycarbonate available) Dimensions：1735mm(L) x 839mm(H)
Gloves Ports	Aluminum/Polyoxymethylene(optional), double O-ring seal, 220mm (8.7") Diameter
Gloves	Butyl, 8" cuff dia., 0.015"thick, 32" long (many other materials and sizes available specific to your needs)
Dust Filter	HEPA 0.3µm, one on gas inlet, one on gas outlet
Box Light	LED, front and top mounted
Leakage Rate	The final acceptance test shall be conducted in accordance with the standard of leakage rate < 0.001 vol%/h
GP20 Gas Purification Unit
Function	Airtight Seal, Removal of H2O and O2, Single purification column system, automatic regeneration
Attainable Purity	Less than 1 ppm moisture and oxygen
Working Gas	Nitrogen, Argon or Helium; Regeneration Gas: H2 accounts for 5% to 10%, and the rest is working gas (purity ≥99.999%)
Vacuum Pump	Rotary vane pump with oil mist and gas ballast control unit 12 m³/h (7 cfm), vacuum degree< 2 x 10-3 mbar (Dry pump is available)
Encapsulated Blower	Oil-free high-speed fan, Air volume：0 - 100 m³/h
Main Valves	Electromagnetic high vacuum valve
Leakage Rate	The final acceptance test shall be conducted in accordance with the standard of leakage rate < 0.001 vol%/h
Cleaning System
Description	After setting the corresponding time and pressure, the system can automatically perform gas displacement on the box

Analysis meter
oxygen analyzer	model	AF-360Z
	measuring range	0-1000 ppm
	Other oxygen analyzers	GE oxy.IQ™ Oxygen Transmitter
· water analyzer	model	AD-160P
	measuring range	0-500 ppm
	· Other water analyzer	GE VeriDri™ Dew-Point Transmitter
Solvent purification system
leakage rate	Material: Stainlesssteel 1.4301 (SUS type 304), thickness 3mm; Internal size: 220 mm (Φ) x 450 mm (H); High-quality activated carbon;
· Optional equipment
Fridge	Independent control system, integrated on the side panel of the box, temperature -35℃, volume available in 18L or 32L. Subject 304 stainless steel plate, 5 variable isolation layer; R404 environmental protection refrigerants, imported;
· Heater Chamber	The large transition chamber is equipped with a heating system, with a temperature of 200℃ and a temperature control of ±1℃
Other Description
product certification	ISO9001 certification, CE certification, UL certification
guarantee period	12 months warranty
Application Precautions	For details, please refer to the sections on hazards, warnings, precautions, etc. in the manual
