手套箱

Product Description:

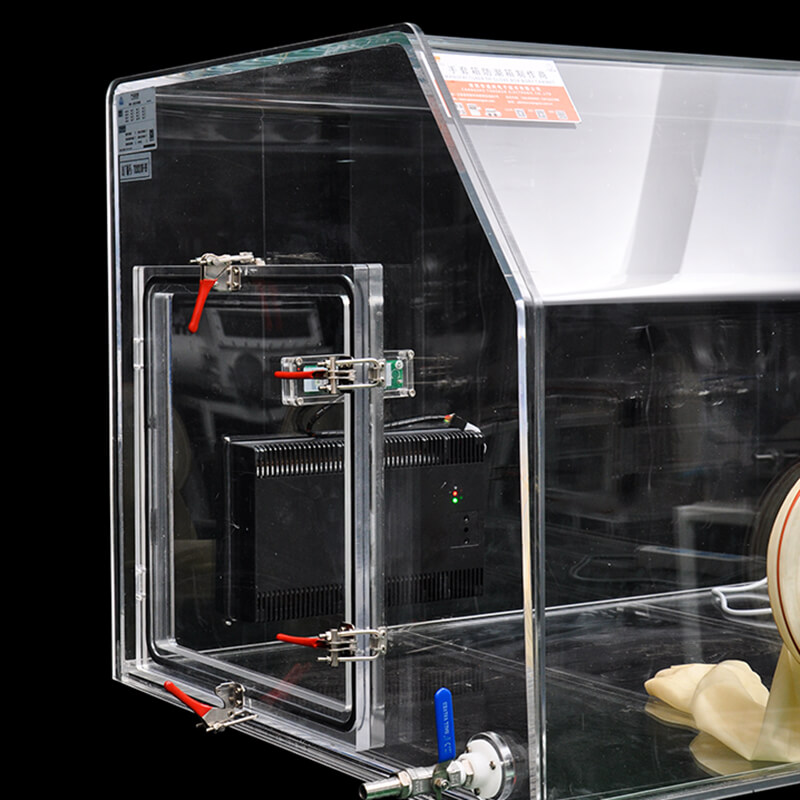

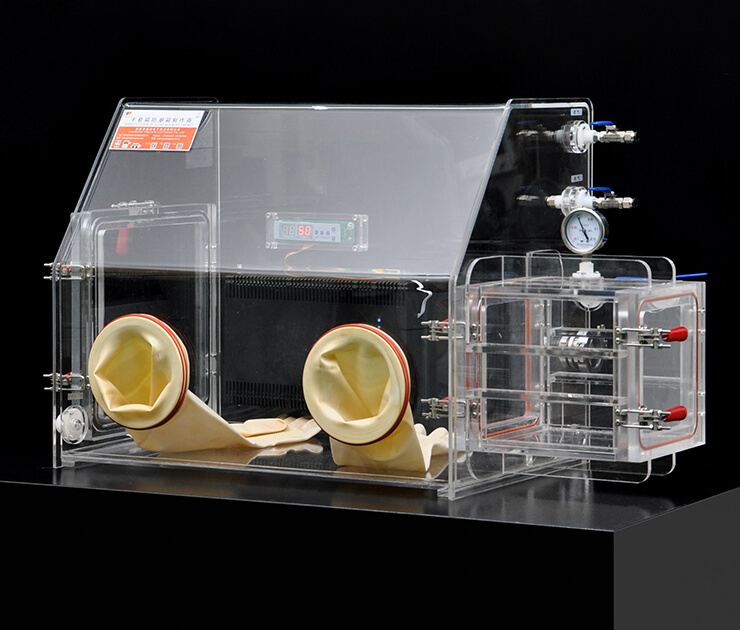

The acrylic H-shaped glove box is composed of a main box chamber, a vacuum transition chamber, a dehumidifier core, a side door, two glove ports, two air intakes and outlets, and a power socket. The product is fully transparent and has a simple structure.

The H-type glove box is suitable for customers who have requirements for water content but do not have an inert gas source in the laboratory. Just plug in the power supply, and the humidity inside the box can be reduced to 1%RH. This glove box is a dual-purpose type and can also be used as a regular glove box to replace inert gases.

Working Principle

The working principle of the PAB-2H acrylic low-humidity glove box is as follows: The humidity is reduced by the dehumidification core module inside the box, with the lowest humidity reaching 1%RH. The glove box is equipped with a vacuum transition chamber. During the experiment, if items need to be transferred inside or outside the box, they can be transferred through the transition chamber without disrupting the low water content atmosphere that has been replaced inside the main box.

Applications

It can be applied to an oxygen-free and moisture-free environment for organomemetallic chemistry, organic synthesis, 3D printing, new material powder packaging, special anaerobic and anaerobic chemical treatment, biomedicine, electronic component processing, solar cell assembly, lithium battery materials and battery assembly experiments, catalyst treatment, pharmaceutical synthesis, nuclear industry, membrane industry, etc.

Product Features

1.Made of imported high-quality acrylic material, it features high transparency, clear experimental process without blind spots, and does not turn yellow over time.
2.Glove box main body is pumping air into vacuum state, with vacuum tank, test process for passing objects can through the transition module.
3.Chamber is equipped with a power socket, electricity use convenient experimental apparatus, such as spin TuYi and days equality;
4.Enclosure in and out of port USES fast plug-in, convenience of tracheal connection, also can choose pagoda, with ball valve switch;
5. With the efficient dehumidification machine service life is long, moisture absorption saturation renewable after repeated work, easy to use, quiet and efficient
